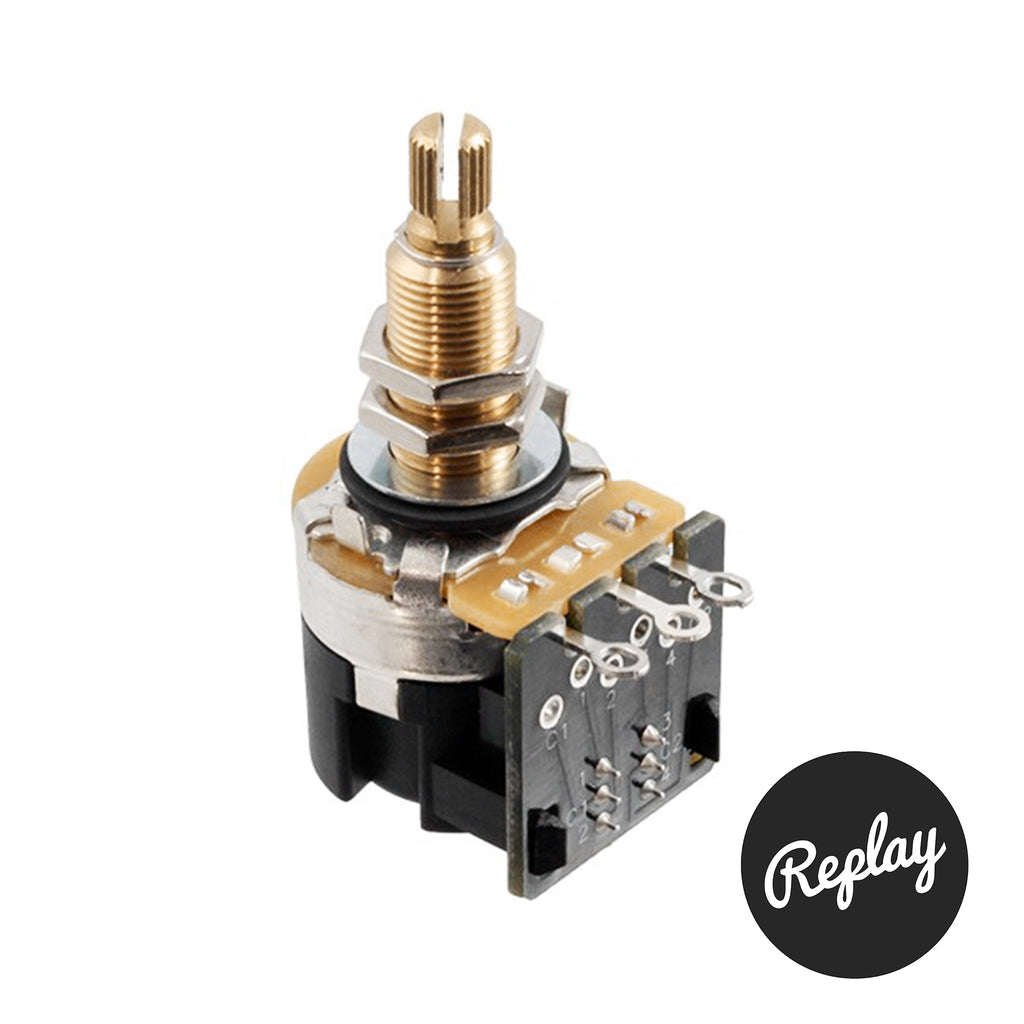

CTS 'Long Push-Pull' Audio Taper Pot (Split-Shaft)

CTS 'Long Push-Pull' Audio Taper Pot (Split-Shaft)

$18.00
Ohms

Pickup available at Replay Guitars

Usually ready in 24 hours

CTS 'Long Push-Pull' Audio Taper Pot (Split-Shaft)

500k

Replay Guitars

Pickup available, usually ready in 24 hours

759 Nicholson Street
Carlton North VIC 3054
Australia

+611800870474

Fast & Reliable Shipping

Inspected in the Workshop

CTS 500k Long Shaft Audio Taper Push Pull Pot - US Thread and 24 Spline.

Includes Nuts, Lock Washer and Dress Washer. Used to control pickup phasing series/parallel switching coil-taps and more.

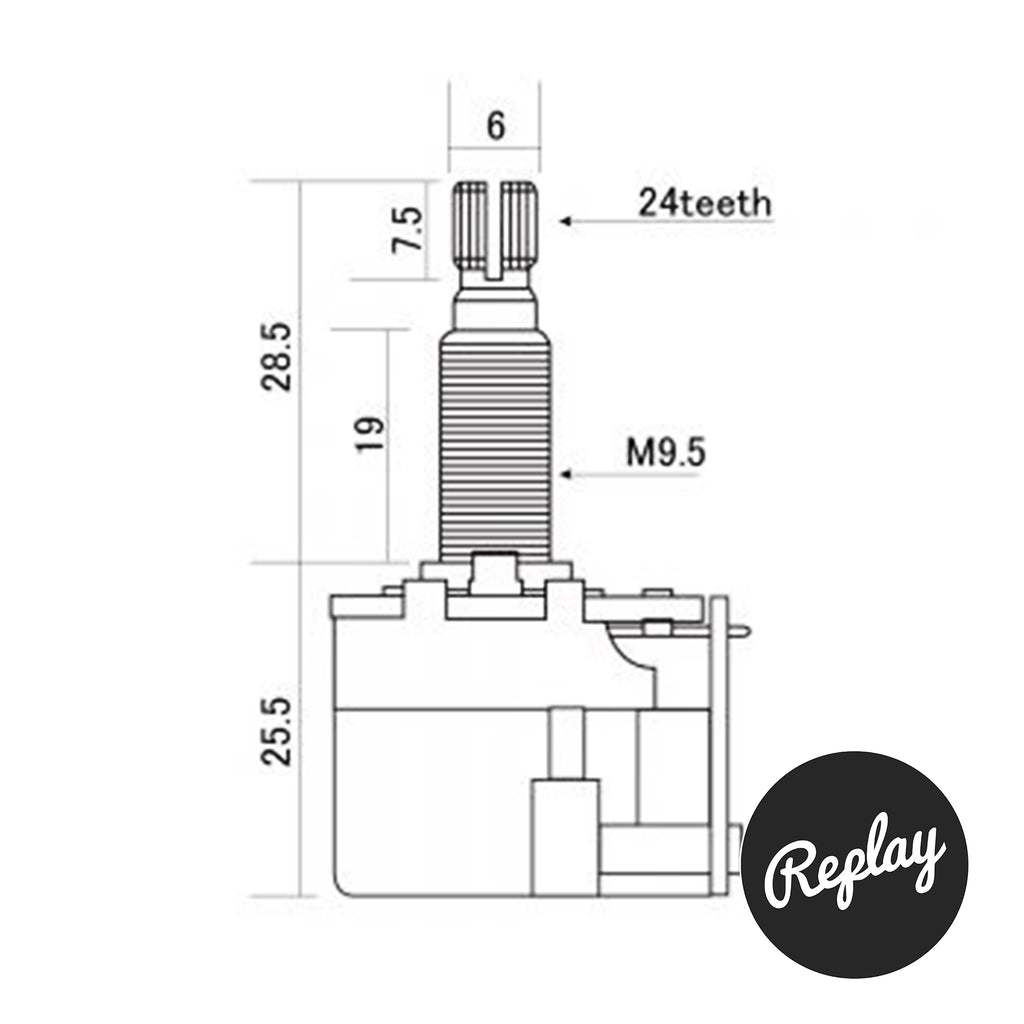

The threaded portion on the shaft is 19mm long. The diameter of the threaded portion of the shaft is 3/8" (9.5mm). The diameter of the Split Shaft / Spline is 6mm.
Requires 1" (25mm) cavity depth.
