CTS 'Push-Pull' Audio Taper Pot (Split-Shaft)

CTS 'Push-Pull' Audio Taper Pot (Split-Shaft)

$18.00
Ohms

Fast & Reliable Shipping

Inspected in the Workshop

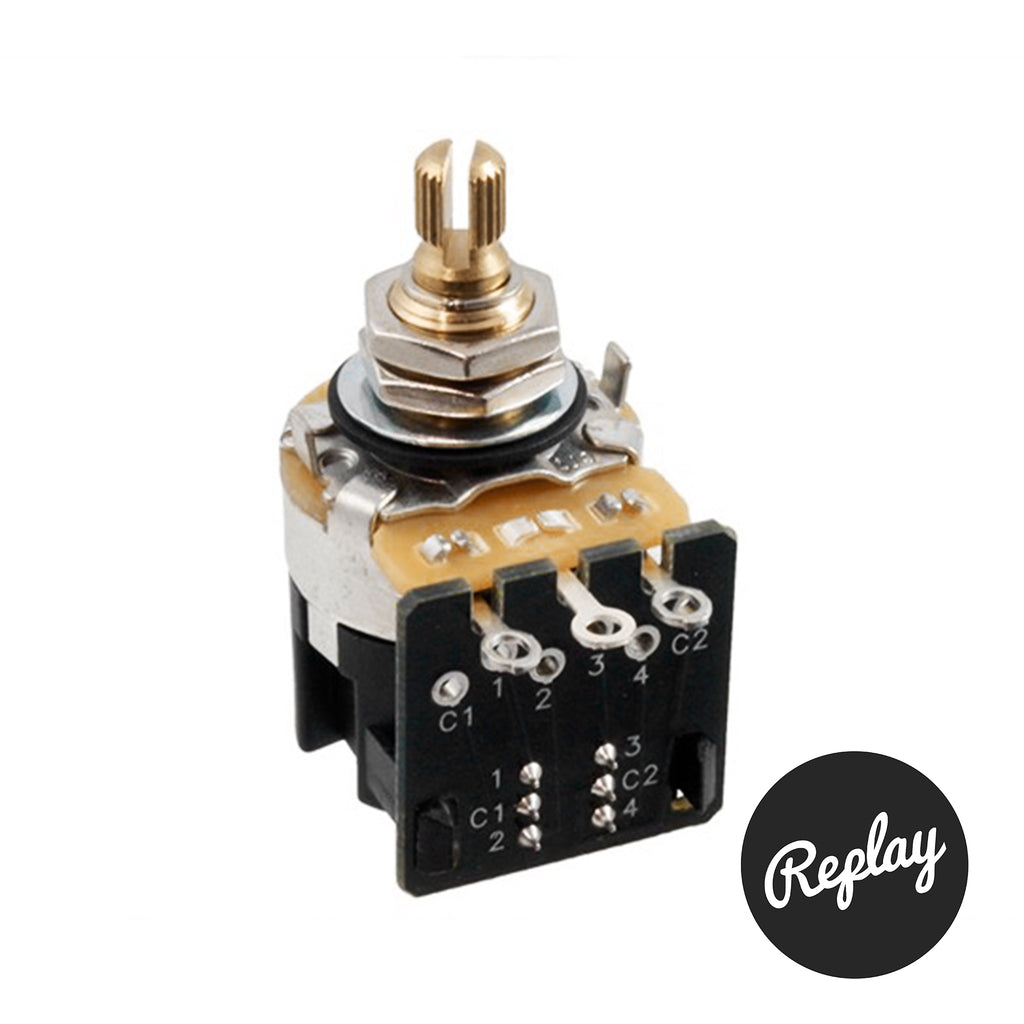

CTS 250k Audio Taper Push Pull Pot - US Thread and 24 Spline.

Includes Nuts, Lock Washer and Dress Washer. Used to control pickup phasing series/parallel switching coil-taps and more.

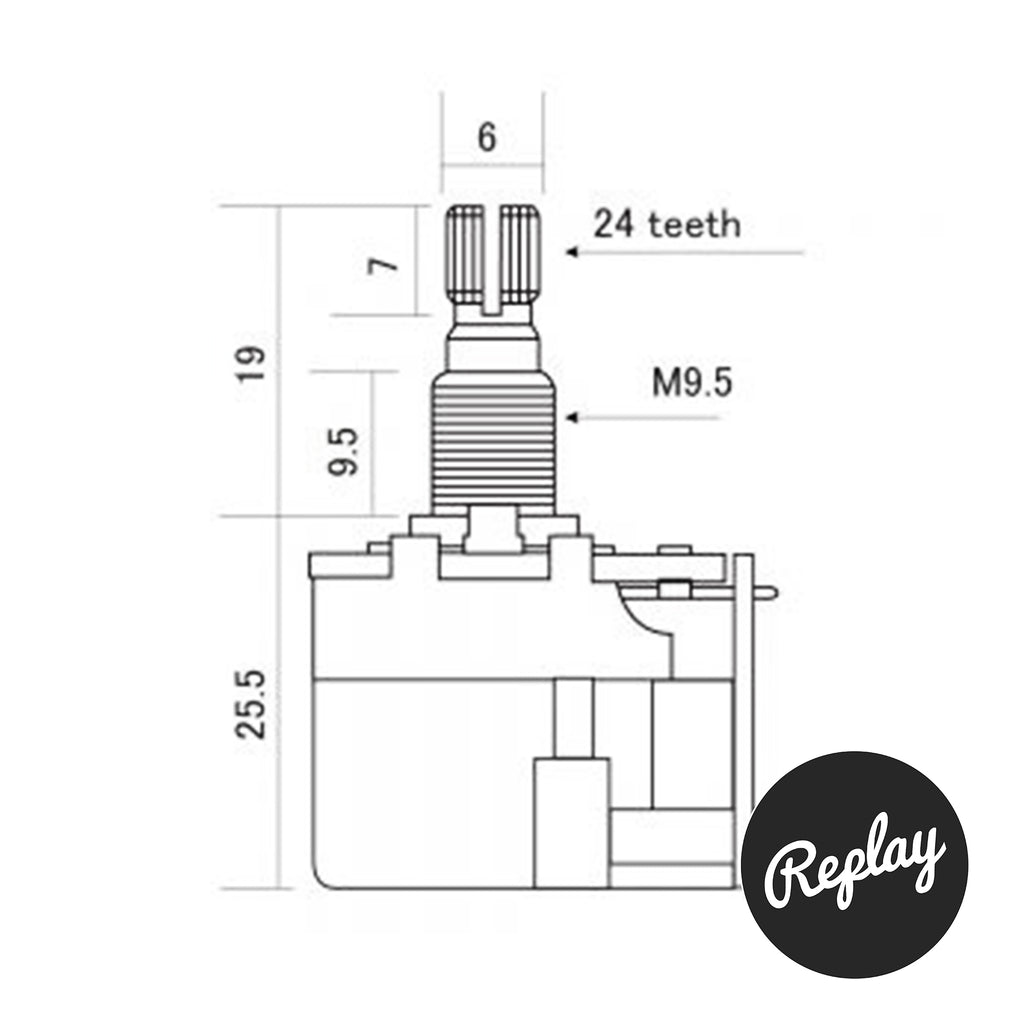

The threaded portion on the shaft is 10mm long. The diameter of the threaded portion of the shaft is 3/8" (9.5mm). The diameter of the Split Shaft / Spline is 6mm.
Requires 1" (25mm) cavity depth.
