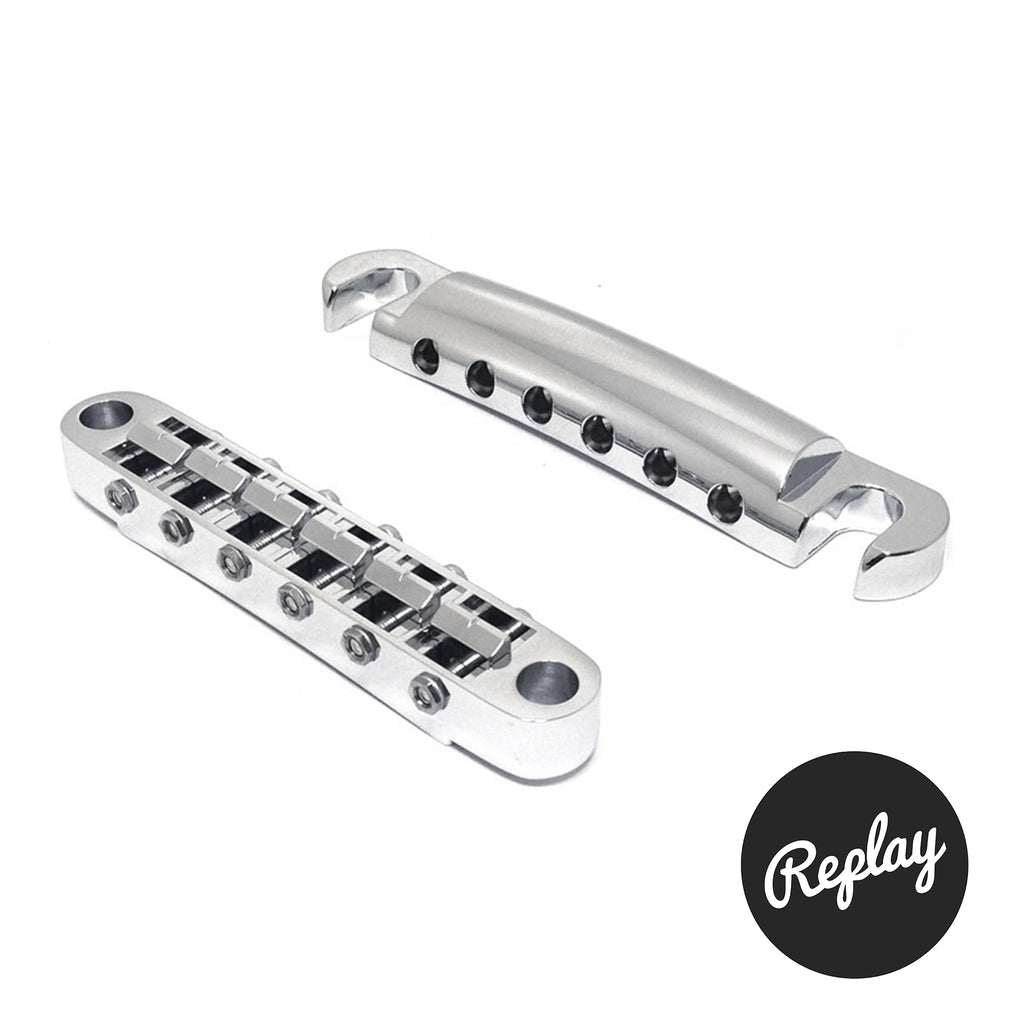

Gotoh Tune-O-Matic & Stoptail Set (Metric)

Gotoh Tailpiece and Bridge upgrade for Epiphone and Import Guitars. The M8 metric mounting posts will screw into the existing body bushings on Epiphone / Import guitars.

Details

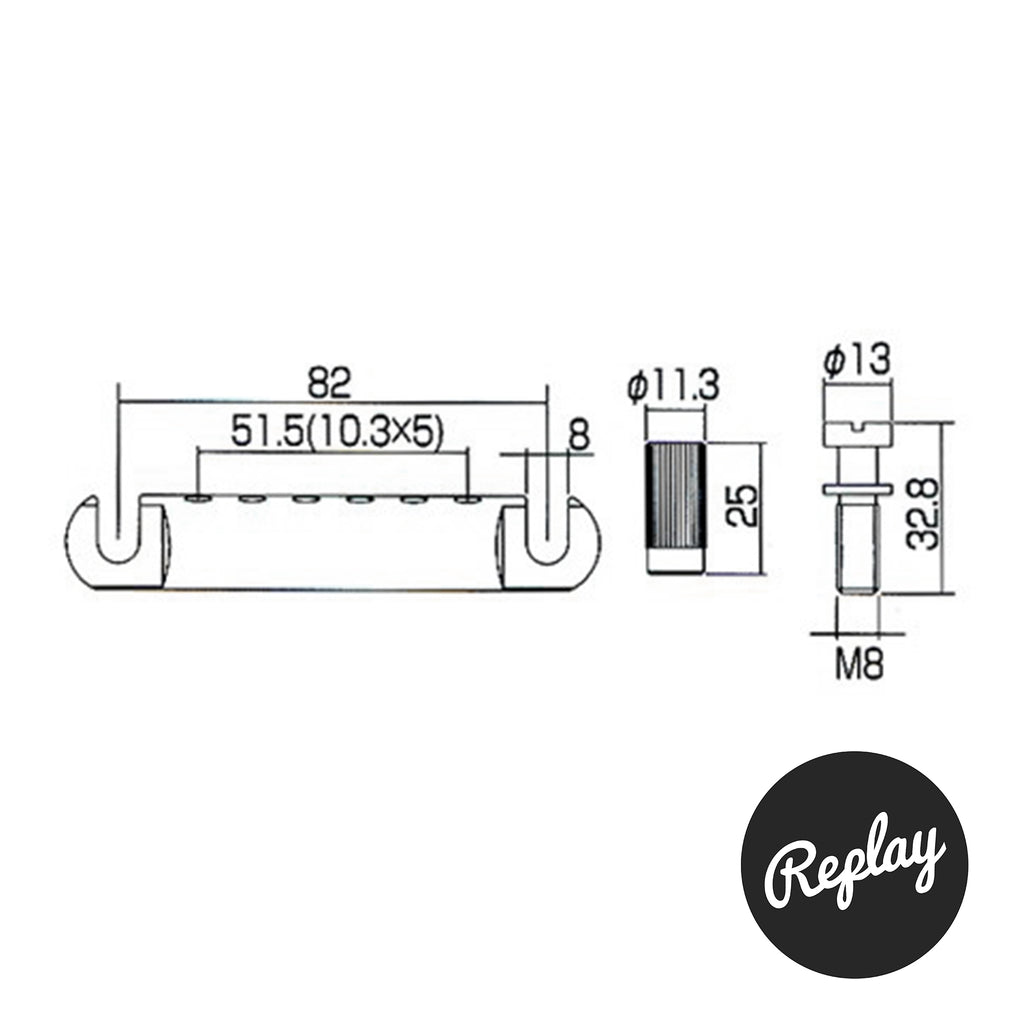

High Quality Gotoh GE101Z Traditional Style Stop Tailpiece with M8 Metric Thread Studs and Anchors. Diecast Zinc. Chrome Finish.

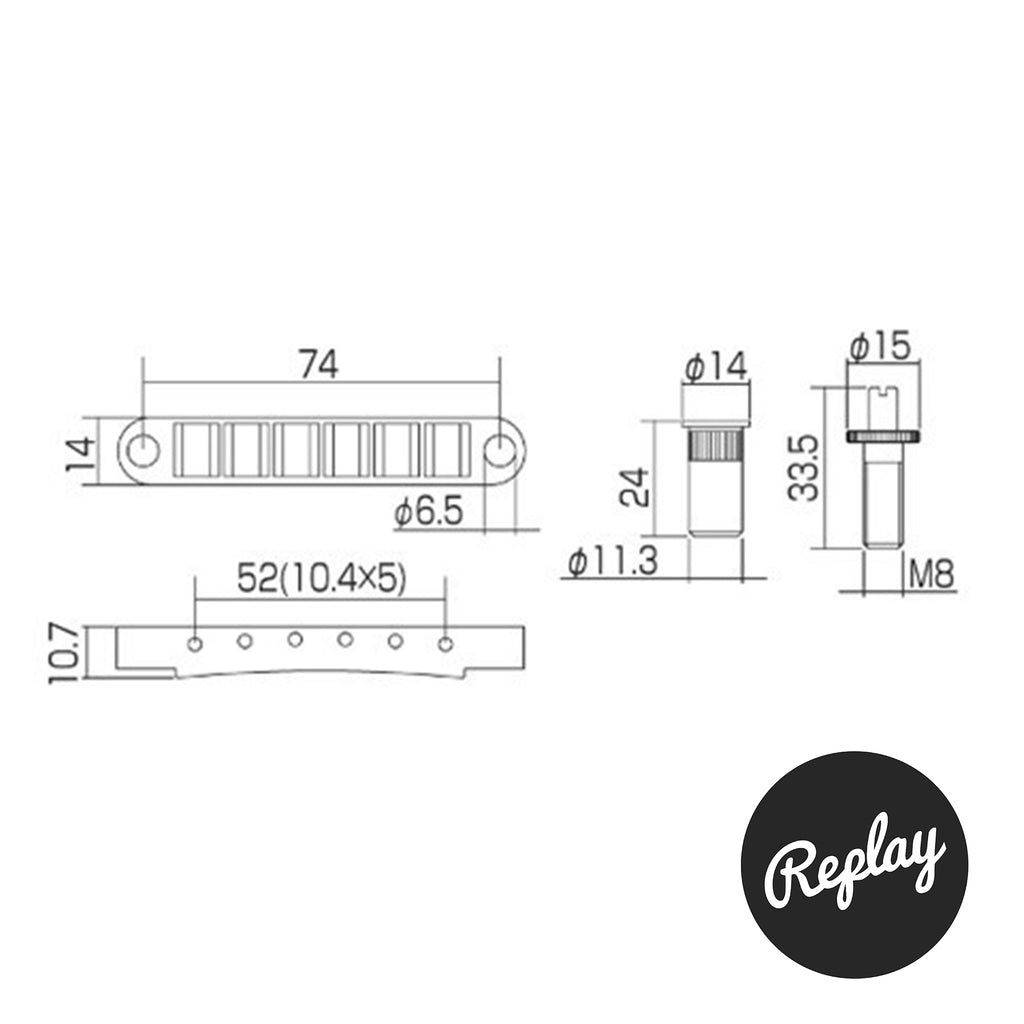

Gotoh 103B-T Tune-o-matic Bridge. Hardened pre-notched zinc saddles. 14mm width for greater intonation range.

- Centre to Centre Post Spacing: 74mm
- Centre to Centre String Spacing: 52mm
- Saddle Radius: 12 inches
- String indication pre-slots
- Bridge Width: 14mm
- Mounting Post Holes: 6.5mm
